Intex Ultra Quadra XTR Frame Pool 549 x 274 x 132 cm - Without Pump and Accessories
Exactly the parts you need
£741.93 £849.00 -13%
(All prices incl. VAT. - Excludes delivery costs)
Features & Advantages
- Easy installation
- Stable pool frame
- Just the parts you need
Item no.: SB-126356OP, Content: 1 set
Product information & technical details
- Item no.: SB-126356OP
- Brands: Intex
- Content: 1 set
- Pool Shape: Angular
- Water Volume at 90% Full: 17,203L
- Pool Length: 549cm
- Pool Depth: 132cm
- Pool Width: 274cm
- Connection: 38mm
- Material: 3 layers of SUPER-TOUGH®
Description
Do you already have a pump and accessories and are just looking for a replacement pool? Then this is the perfect option for you!
The installation is simple and does not require any special knowledge or tools, so it's not long before you can jump in and enjoy swimming!
The powder-coated steel pool frame and durable pool liner mean this pool is sturdy and long-lasting - it will be with you for many summers to come!
Technical details
| Dimensions: | 605 x 330 x 132 cm |
| Water depth at 90% capacity: | 114 cm |
| Base thickness: | 0.73 mm |
| Wall thickness: | 0.73 mm |
| Size of the connections: | Ø 38 mm |

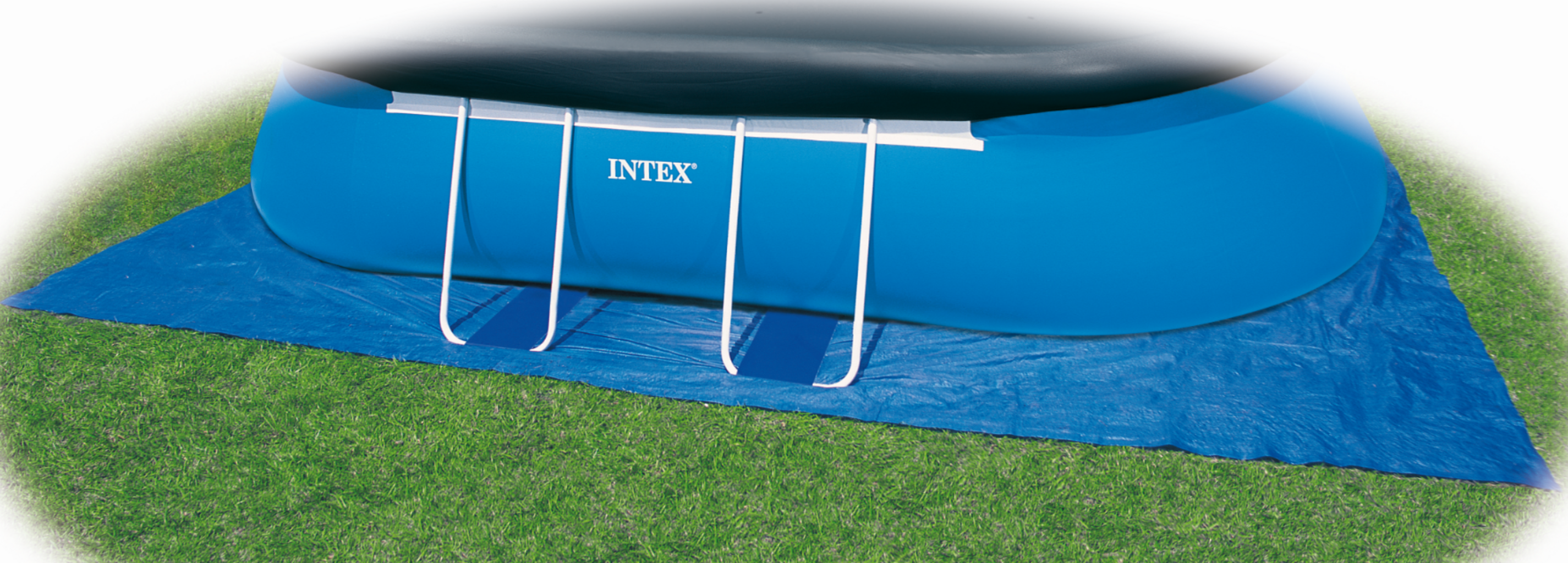

| Groundsheet: | PE, 75 g/m² |

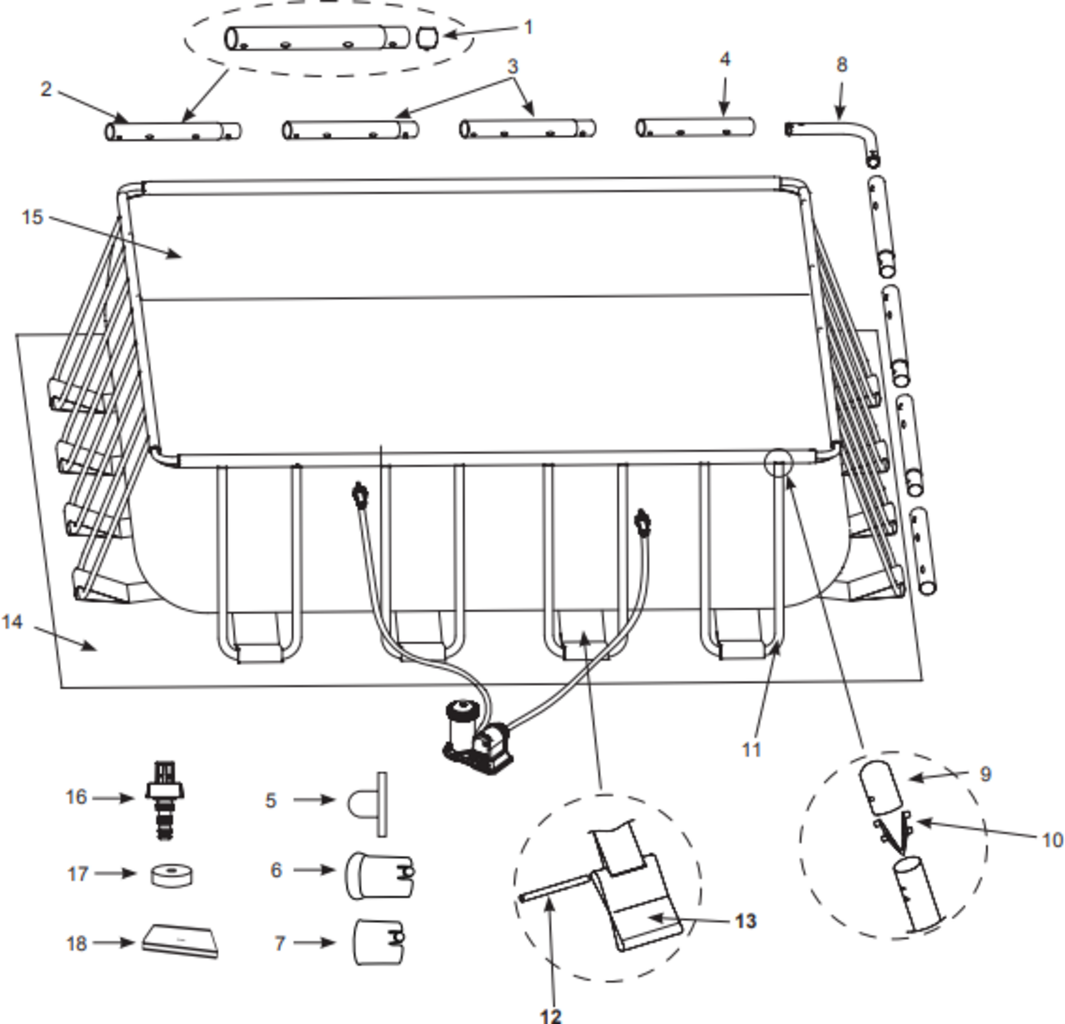

The following items/parts are included:
Carton 1 - Pool liner with connections (128932GH):
| Quantity: | Product name: | |

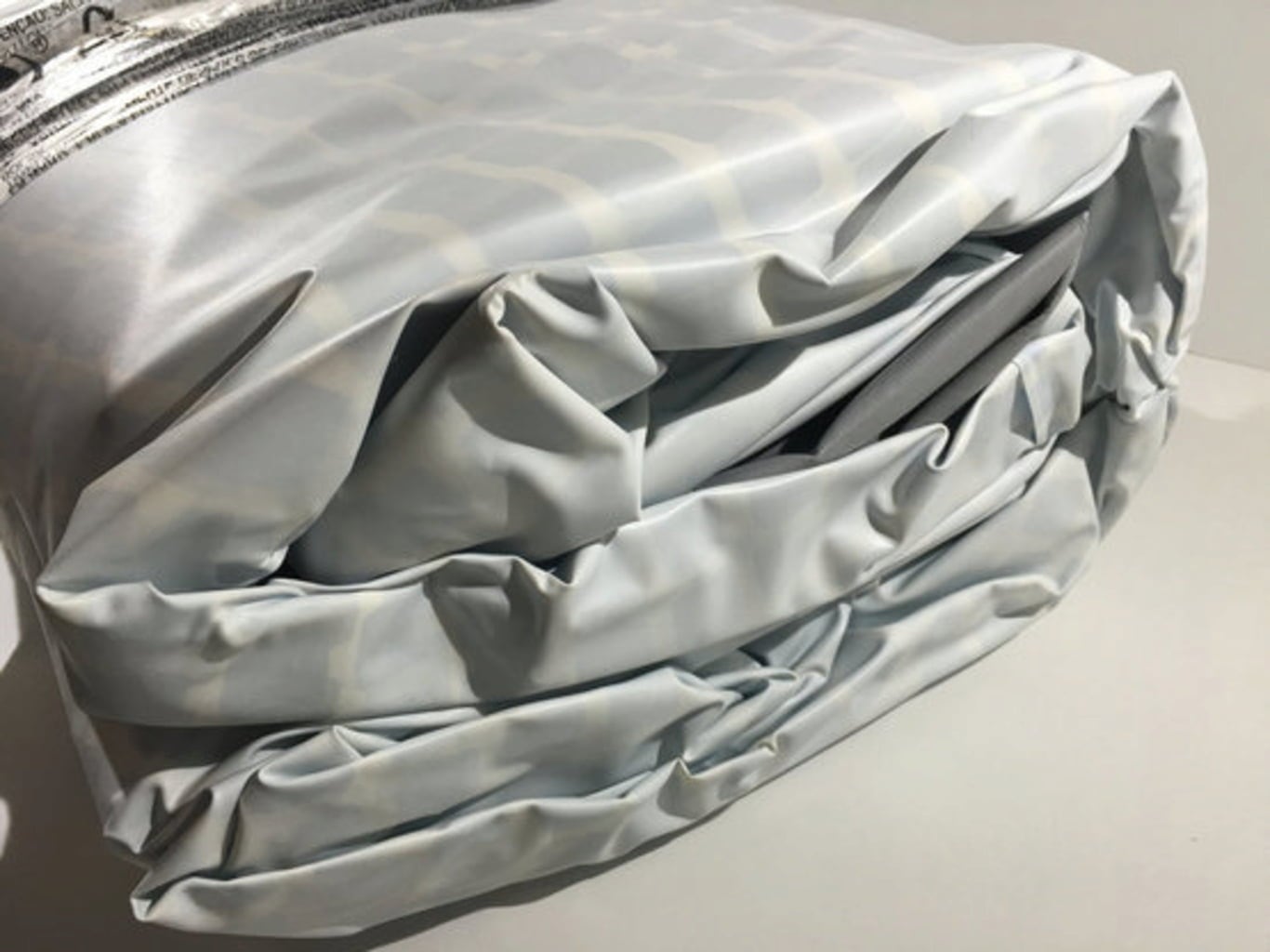

| 1 | Pool liner for Ultra Quadra 549 x 274 x 132 cm | |
| 1 | Drainage device with hose connection | |
| 2 | Valve cap for pools from 107 cm height | |
| 2 | Seal | |
| 2 | Flat rubber washer for the filter | |
| 2 | Filter nut | |
| 2 | Rubber washer for the filter valve | |

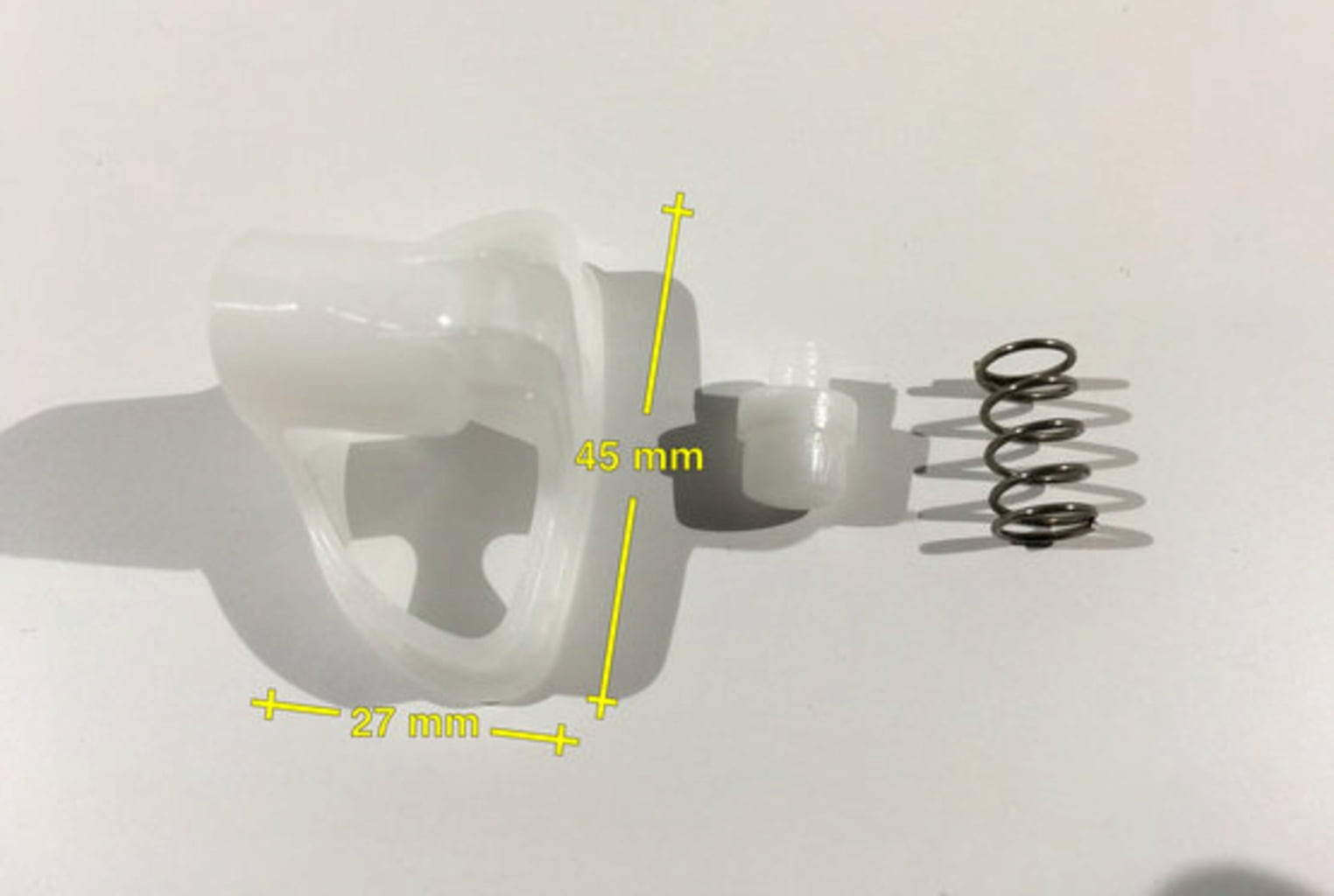

| 2 | Plunger valve for INTEX pools from 2006 | |
| 1 | Adjustable inlet nozzle from 5.49 m for Easy Pools | |
| 2 | Screw filter connector | |
| 1 | Large sieve grill for implementation, from model 2016 |
Carton 2 - Replacement beams (128933GH):
| Quantity: | Product name: |
| 8 | Single button spring for 9`X18`X52", 16`X32`X52" |

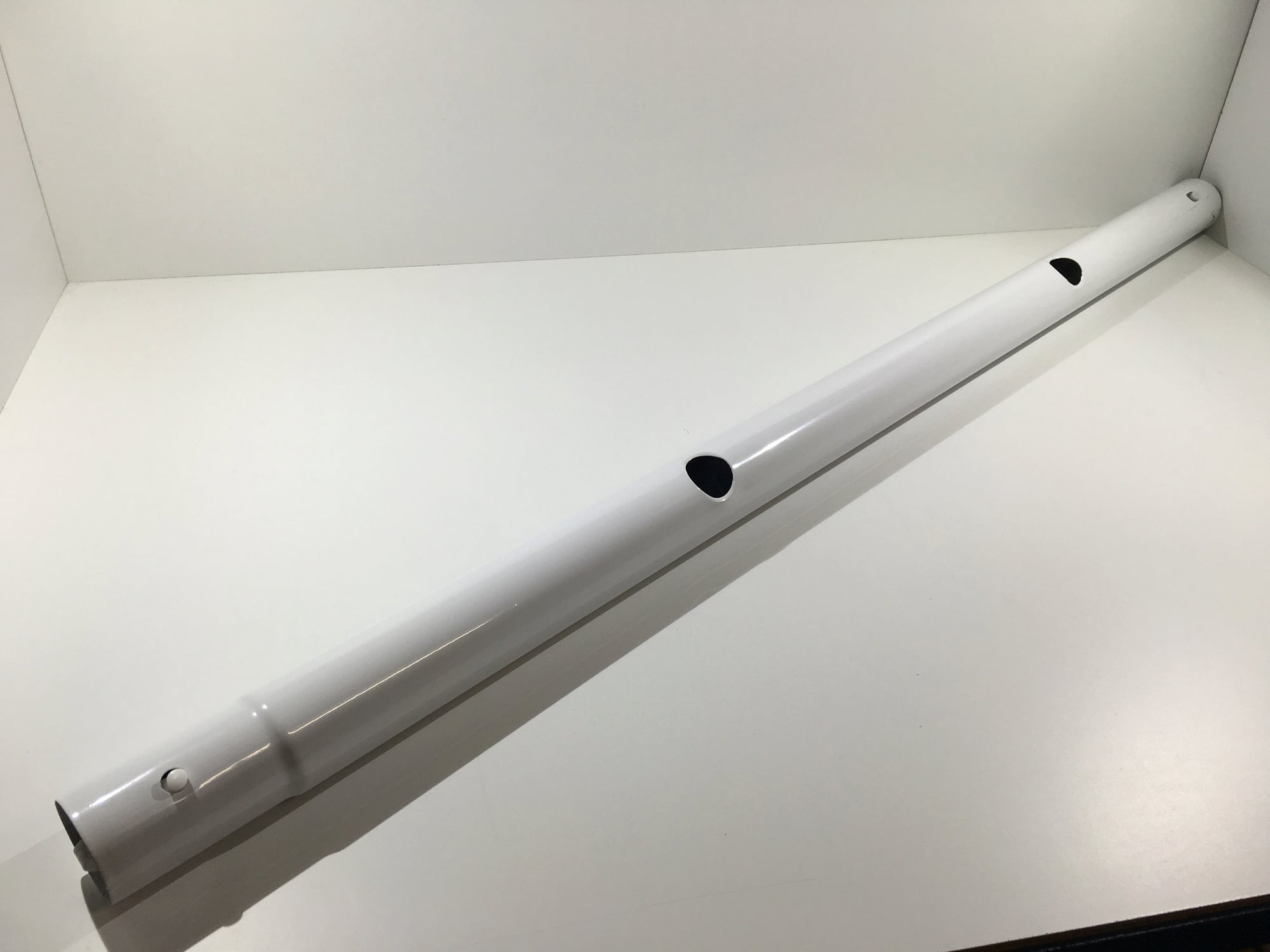

| 2 | Horizontal beam A, L=1305 mm for Ultra Quadra |
| 4 | Horizontal beam B, L=1225 mm for Ultra Quadra |
| 2 | Horizontal beam C, L=1220 mm for Ultra Quadra |
| 2 | Horizontal beam D, L=1150 mm for Ultra Quadra |
| 2 | Horizontal beam F, L=1067 mm for Ultra Quadra |

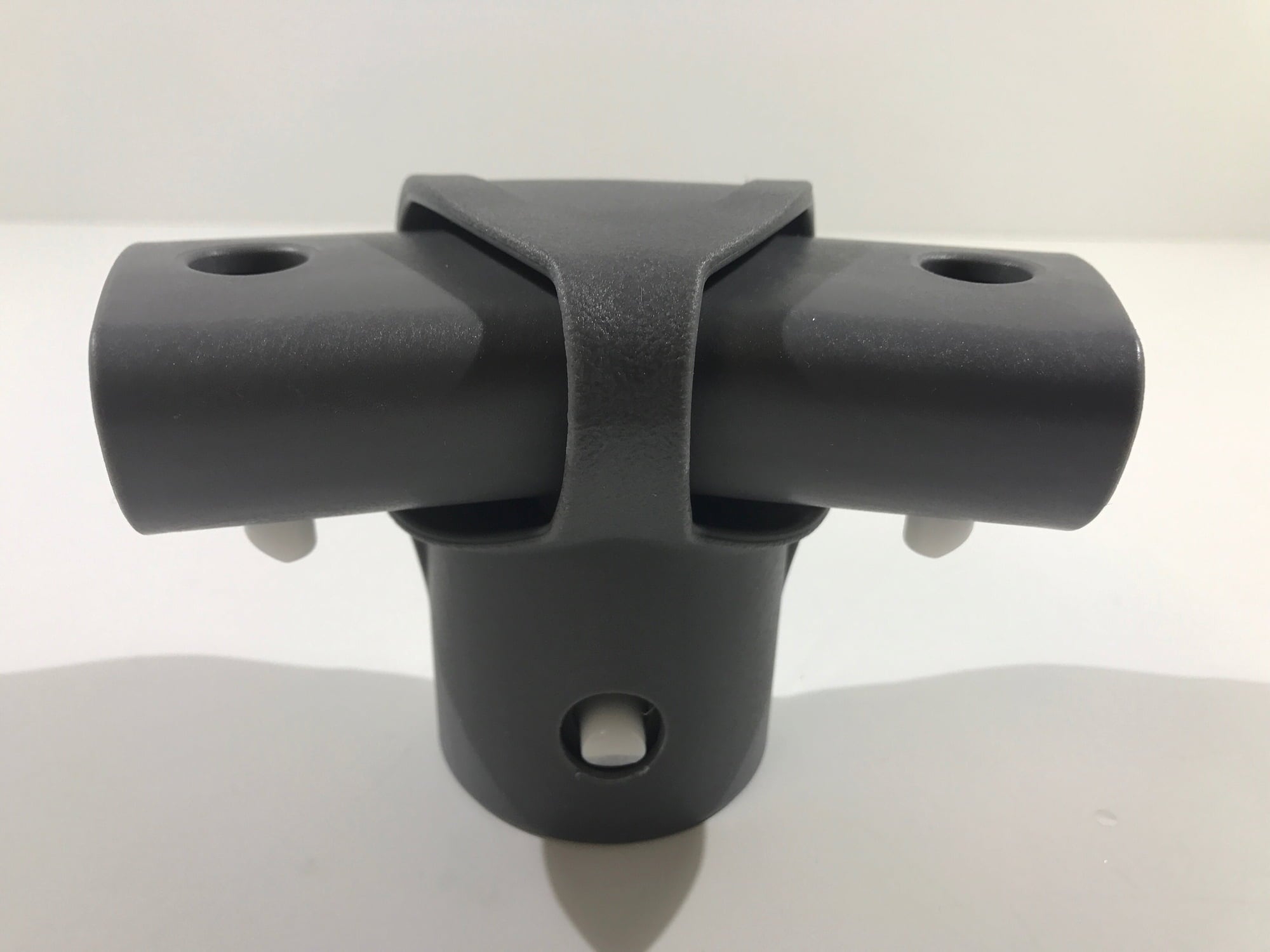

| 4 | Angle connection for Ultra Quadra |
Box 3 - Clips, connectors & tees (128934GH):
| Quantity: | Product name: |

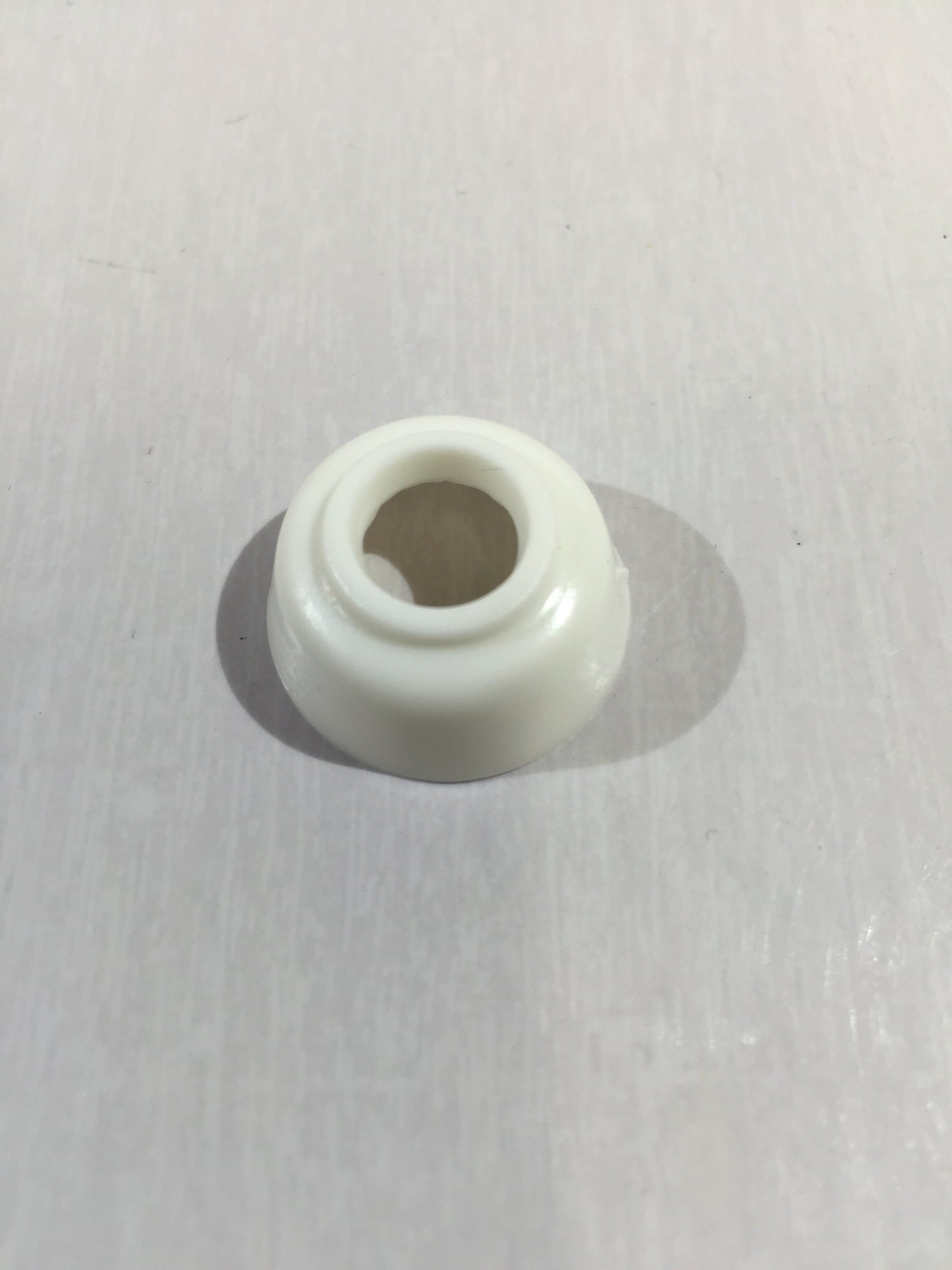

| 24 | End cap for U-shaped side rail for 9''X18' X52" |
| 24 | Extensible spring pin for 9'X18'X52", 12'X24'X52 |

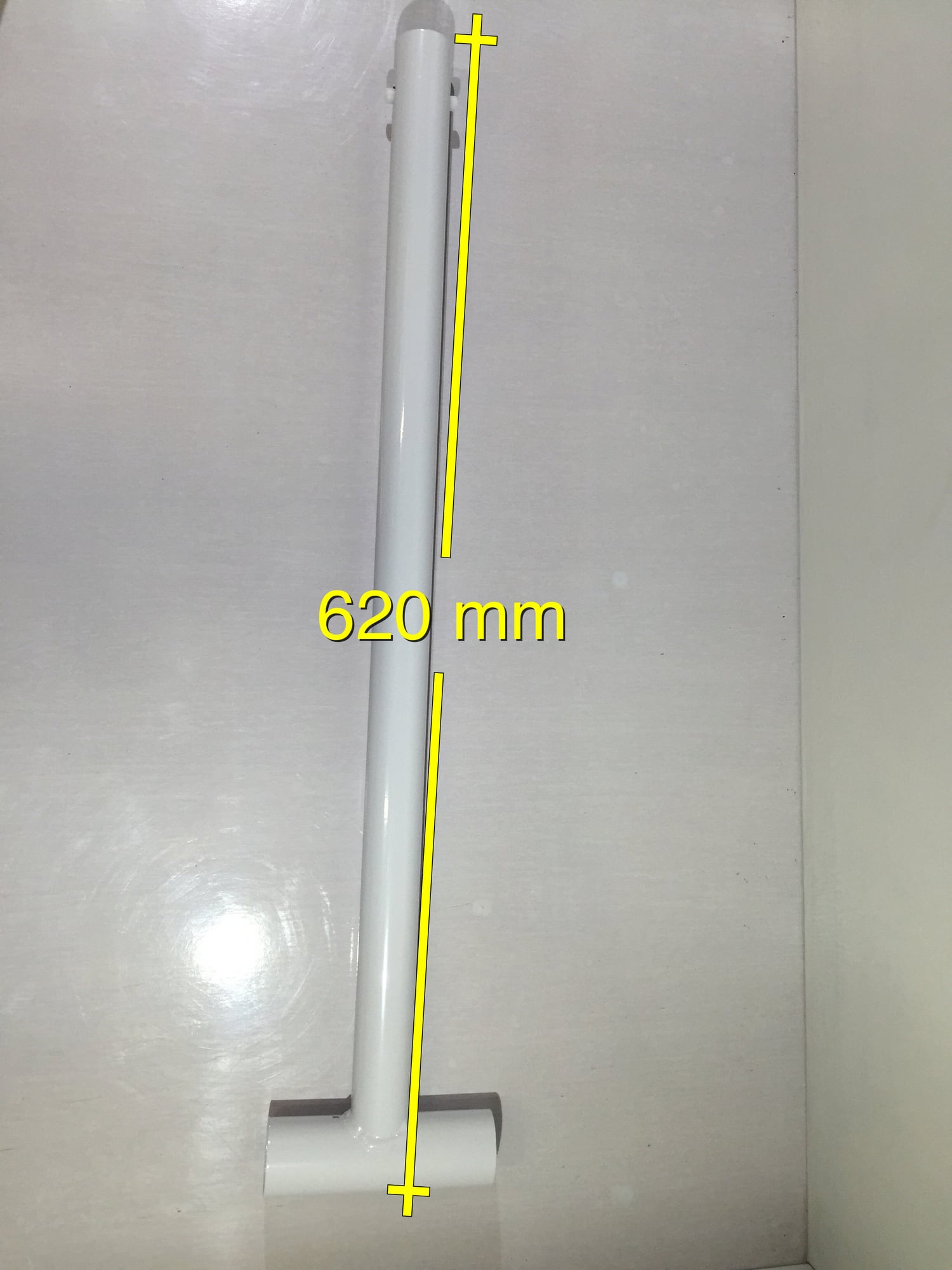

| 12 | U-shaped side support for Ultra Quadra |

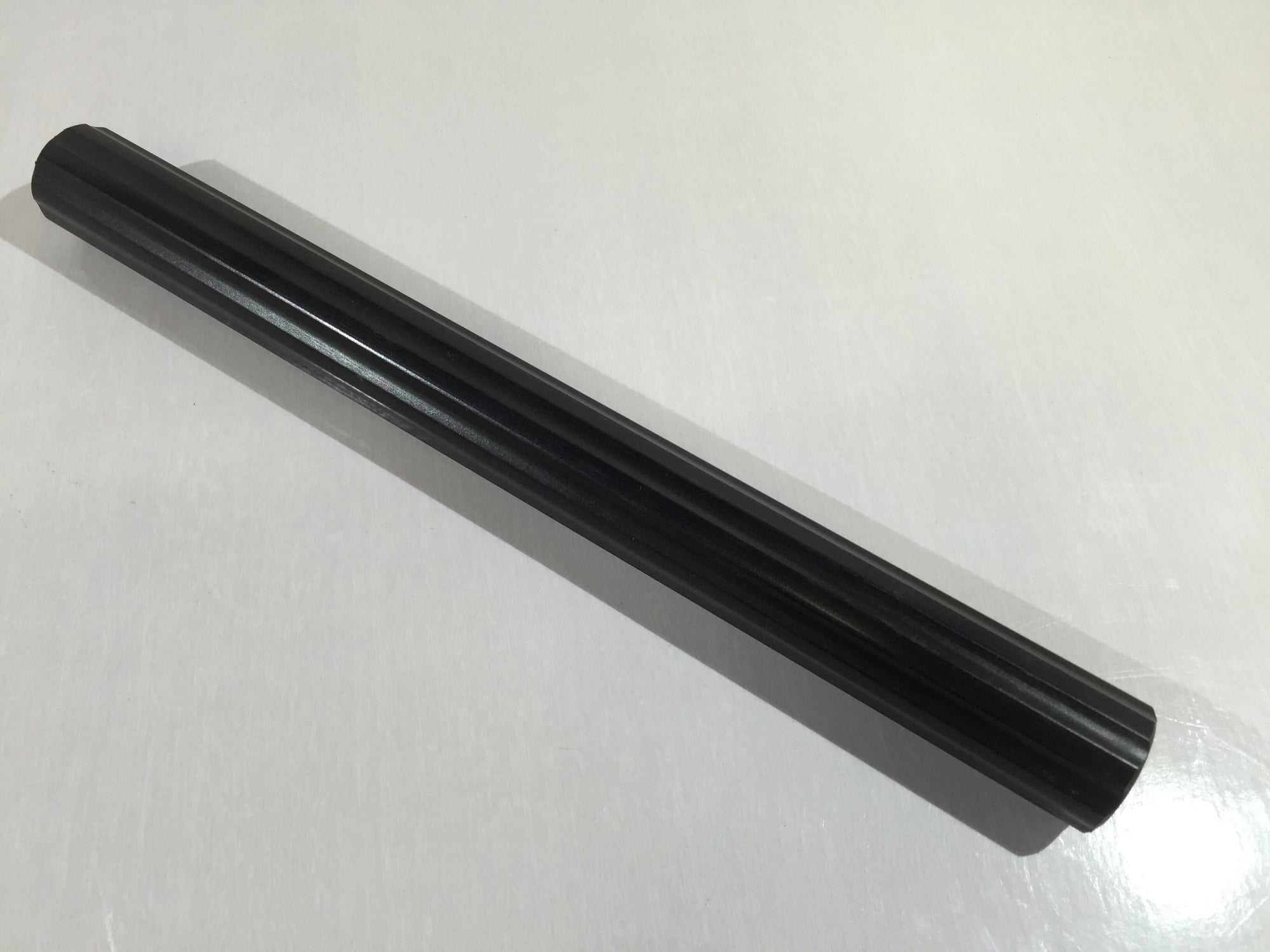

| 12 | Connecting rod for 12'X24'X48", 9`X18`X52", 16`X32`X52" |
| 12 | PVC transition liner for Ultra Quadra |

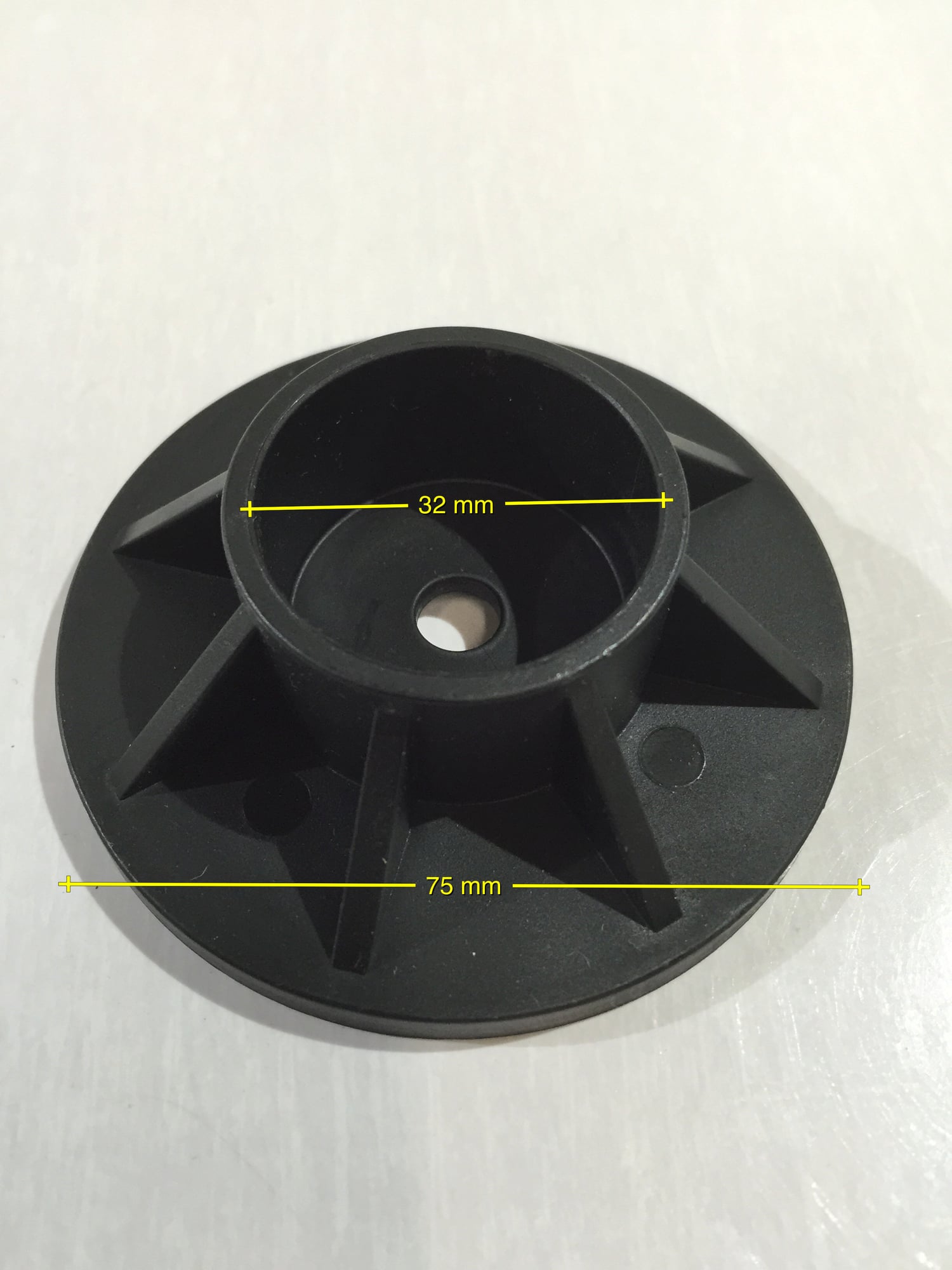

| 8 | Plastic insert for angle connection |
| 8 | Plastic insert for horizontal beams |
Not quite what you're looking for?
If you only need replacement bars or the pool liner with its connections for your Ultra Quadra XTR Frame Pool 549 x 274 x 132 cm then these links will help you:
